Eco-friendly Stability Waterproof Felt Modified Bitumen Polyester Mat

FOB Reference Price:Get Latest Price
$2.45 - $2.65 / Kilogram | 5000 Kilogram/Kilograms (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China
Brand Name:
Julong
Model Number:
JL- Polyester Mat
Type:
Waterproof Membrane
Alias:
Linoleum Fabric,SBS / APP Waterproof Fabric
Width:
1.02m
Thickness:
0.58mm~1.9mm
Moisture Content:
≤1.5%
Tensile Strength:
175~1000N/5cm
Elongation:
23~~42%
200 ℃ Thermal Contraction:
≤2.0%
MOQ:
5 Tons
Application:
Waterproof, Linoleum,underground engineering
Supply Ability
Supply Ability:
250 Ton/Tons per Week Modified Bitumen Polyester Mat
Packaging & Delivery
Packaging Details
Modified Bitumen Polyester Mat
Normally suit for 40'ft high container .44 rolls per container
600--1500meters per roll
Port
Guangzhou, shanghai, qingdao
Video Description

Eco-friendly Stability Waterproof Felt Modified Bitumen Polyester Mat

—— Product ——

It refers to non-woven fabric that is produced by the spun-bonded needling thread produced by dacron, and then it is made of non-woven fabric by pressing, soaking, drying, ironing, cutting and packaging.polyester filament nonwoven is a spunbond polyester filament nonwoven asphalt mat designed to have exceptional tensile, tear and elongation properties. Because of its natural features, it is the best substrate for bitumen waterproof membrane rolls. Even the extremely temperature, it showed the best performance as waterproof roofing reinforcement.

Advantages

Excellent reinforcing properties

Exceptional tensile, tear and elongation properties

Excellent impregnability for bitumen coating

High resistance to mechanical damage, puncturing and other damage caused by chemical solvents

High resistance to extreme temperatures

Economical to the waterproof rolls cost and production

Longer service life in roofing

Tech Index

ItemUnit Area WeightThicknessTensile StrengthElongation Under Maximum Pull200 ℃ Thermal ContractionMoisture Content
LHLHLH
Unitg/m2mmN/5cmN/5cm%%%%%
Index         800.58 ≥200 175 23 ≥25 ≤2.0 ≤2.0   ≤1.5
 1000.62 ≥220 190  2325 ≤2.0 ≤2.0
 1200.66 ≥430 270  23 25 ≤2.0 ≤2.0
 1400.78 ≥450 ≥300  25 28 ≤2.0 ≤2.0
 1600.80 ≥480 340  28 ≥30 ≤2.0 ≤2.0
 1700.82 ≥500 350  28 30 ≤2.0 ≤2.0
 1800.85 ≥530 400  28  30 ≤2.0 ≤2.0
2000.9-1.1≥600480 30 30≤2.0≤2.0
2501.0-1.55≥800780 35 40≤2.0≤2.0
3501.7-1.9≥10001000 42 42≤2.0≤2.0

Eco-friendly Stability Waterproof Felt Modified Bitumen Polyester Mat

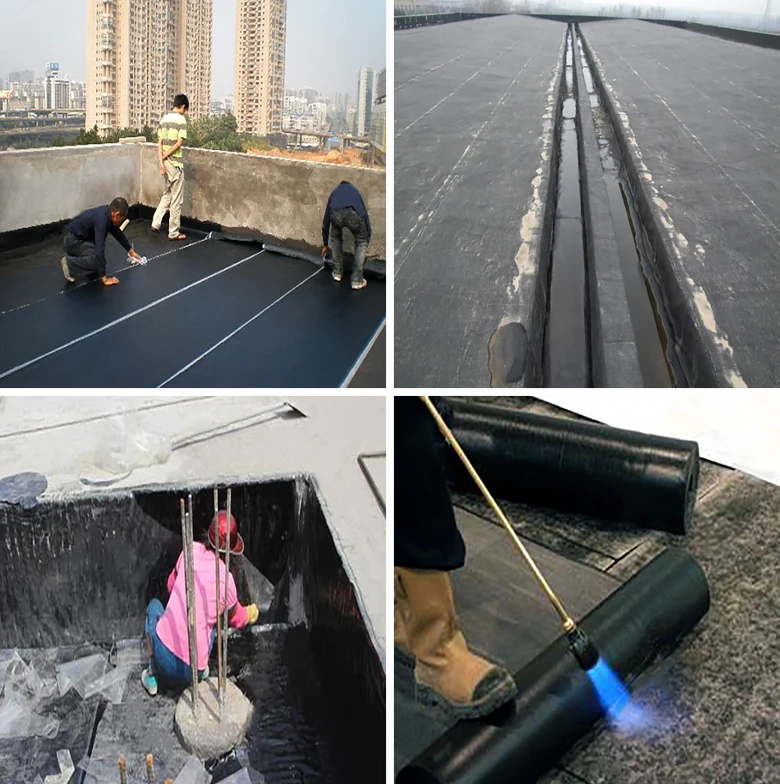

Application1.Ideal non woven reinforcement of asphalt waterproofing membrane and asphalt shingles.
2.Act as the lining for roof insulation layers to protect polyester foam insulation from the damaging effect caused by chemical solvents in bitumen so as to prolong the lifetime of heat insulation layer.
3.Used for storing water pool,flooring,underground bridge's surface,waterproof project,and corrosion resistance in indoor ground building base.
4.Filtration:The filtration layer of the dykes, river canal, seacoast, concrete slope,retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
5.Separation:The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
6.Adding muscle:The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.

Compared with polyester filament geotextiles, filament spunbond needle punched nonwovens for polyester filament base fabrics need to have the following characteristics:

       (1) Stronger requirements, better homogeneity of strength, and generally strong CV of homogeneity of less than 5% and no lower single strength;

       (2) The uniformity of grammage is more demanding, and the average grammage uniformity CV value is less than 5%.

       (3) In order to ensure the elongation of the coil needs to have a higher elongation at break under maintaining its high strength;

       (4) The aspect ratio is less than 1.2;

       (5) Better fastness to consolidation;

       (6) Better thermal stability and dimensional stability



Packaging Details

Eco-friendly Stability Waterproof Felt Modified Bitumen Polyester Mat

Normally suit for 40'ft high container .44 rolls per container

600--1500meters per roll

Delivery Time

Shipped in 3-15 days after payment
